- Size: 1
- Place of Origin: ZHEJIANG
- Brand Name: JUKE
- Model Number: 7075 alloy aluminum sheet
- Weight: 1.000 kg

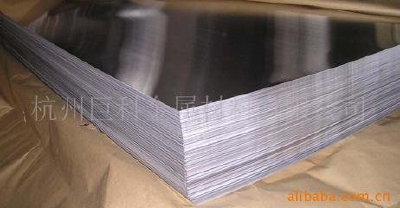

| Product | Aluminum sheet |
| Country of Origin | China mainland |
| Alloy | 7075 |
| Temper | T6 |
| Width | 200-1500mm |
| Thinkness | 6-100mm |
| Length | less than 8000mm |
| MOQ | according to different size,normal 5 tons |
| Payment Terms | T/T;L/C |
| Loading Port | DaLian,Tianjing,Shanghai |
| Delivery Time | Within 30 days after receiving the prepayment or original L/C |
Surface Qulity
B e free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use.
Production standard
Chemical Composite: GB/T 3190-2008, JIS, EN, ASTM
Mechanical Property: GB/T 3880-2006, JIS, EN, ASTM
Certificate
ROHS, SGS, FDA, ISO9001:2008, ISO14001:2004, GB/T 28001-2001, FORM A/E or CO, Mill Test Report.
Technical parameters
alloy | temper | thinkness mm | Tensile strength R m MPa | The strength of extension R p 0.2 MPa | elongation % |
7075 | 0 | > 0.5 0~1.50 | ≤ 2 50 | ≤ 14 0 | 10 |
|
| >1 .5 0~4.00 | ≤260 | ≤140 | 10 |
|
| >4.00~12.50 | ≤270 | ≤145 | 10 |
|
| >12.50~25.00 | ≤275 | — | — |
| T62 5 | >0.50~1.00 | 485 | 415 | 7 |
|
| >1.00~ 1.5 0 | 495 | 425 | 8 |
|
| > 1.5 0~4 .0 0 | 505 | 435 | 8 |
|
| >4 .0 0~ 6.0 0 | 515 | 440 | 8 |
|
| > 6.0 0~ 1 2.50 | 515 | 445 | 9 |
|
| >12.50~25.00 | 540 | 470 | — |
| T6 | >0.50~1.00 | 485 | 415 | 7 |
|
| >1.00~ 1.5 0 | 495 | 425 | 8 |
|
| > 1.5 0~4 .0 0 | 505 | 435 | 8 |
|
| >4 .0 0~ 6.0 0 | 515 | 440 | 8 |
|
| >6 .0 0~100.00 | — | — | — |
Standard Export Package
- Size: 1
- Place of Origin: ZHEJIANG
- Brand Name: JUKE
- Model Number: 7075 alloy aluminum sheet
- Weight: 1.000 kg
